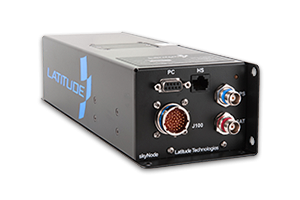

SkyNode S200-012 for Safety Services SATVOICE
The Latitude SkyNode S200-012 is a robust Iridium-based satcom system that meets the requirements as a Long-Range Communications System (LRCS) for Air Traffic Services (ATS) safety services communication. Designed according to standards set in Satellite Voice Guidance Material (SVGM) and FAA AC20-150B, the SkyNode for Safety Services carries TSO-C159b certification. Improve operator safety and convenience while providing secure uninterrupted global communication.
![SkyNode S200-012 for Safety Services SkyNode S200-012 (Safety Services)](https://www.latitudetech.com/wp-content/uploads/elementor/thumbs/Safety-o2se9jystcctlxlfl771qehlgvf60m1isdayrszb2o.png)
Approved TSO-C159b Next Generation Satellite System (NGSS)
Uninterrupted worldwide coverage and clear voice communication
Support ATS priority calling and urgency based direct overriding
Certified as a Long Range Communication System (LRCS)
Enable Satellite SATVOICE
for uninterrupted worldwide communication
Designed according to some of the toughest environmental standards in the industry, the SkyNode for Safety Services functions as an ARINC-739 sub-system to interface to Multi-function Control and Display Units (MCDUs). An ideal certified solution for a Long Range Communications System, ensure your pilots are always connected to your Operational Control Centre and Air Traffic Services no matter the flight plan. Approved to TSO-C159b “Next Generation Satellite Systems (NGSS) equipment” the SkyNode for Safety Services is recognized by Transport Canada, FAA and EASA. Utilizing the Iridium satellite network, receive uninterrupted global pole-to-pole coverage and meet the airworthiness fitment guidelines of AC 20-150B for SATVOICE equipment for Long Range Communication Systems (LRCS).
The SkyNode SATVOICE system provides operators with uninterrupted worldwide coverage and clear voice communications that are not subject to radio fading and interference typical of HF systems. At just 1.70 lbs., the S200-012 connects to an aircraft’s communication system and supports dual MCDU interfaces, or Latitude’s own low-profile RC-6000A-S CDU display and dialer. Legacy aircraft without ARINC-739 MCDUs may optionally be configured to interface to a single Control Display Unit (CDU) via RS-232.
The SATVOICE operational principals of caller authentication, priority and pre-emption are important in today’s busy airspace and security environment. The SkyNode for Safety Services supports the set-up and initiation of dialing, as well as ATS priority calling and direct override of calls with lesser urgency. Optimize ATC communication as mandated by various regulatory agencies, today.
Technical Specifications
• Multiple voice communication interface options
• Dual A739 MCDU interface (for airlines)
• Single CDU (for business jets and older commercial/cargo airlines that do not support A739 equipped MCDUs)
• Built to ICAO SVGM and AC 20-150B, SATVOICE supporting Air Traffic Services (ATS)
• Versatile mounting configurations
• Remote SIM module
• Flight Tracking option
• Size: 11.50” x 3.81” x 2.75” (29.2 x 9.7 x 7.2 cm)
• Weight: 1.7 lbs (772 g)
• Power input voltage: 18-32 VDC
• Current: 0.8 A nominal, @ 28 VDC 0.25 max A during transmit
• ARINC-429, 3 rx/1 tx
• ARINC-739 interface protocol
• Antenna options: TSO’d single or dual Iridium antenna or dual element • GPS/Iridium antenna
• I/O support for remote switches and indicators
• Serial data ports for Laptop/messaging terminal
• Bluetooth/WiFi capable of messaging with iPad, Android, and more
• Internal fast-fix 66 channel SBAS (WAAS, Glonass, etc.) GPS receiver
• Operating Temperature range: -45º to +70º C
• RTCA/DO-160G
• RTCA/DO-178C
• FAA, TCCA and EASA STCs are available
• TSO-C159b
